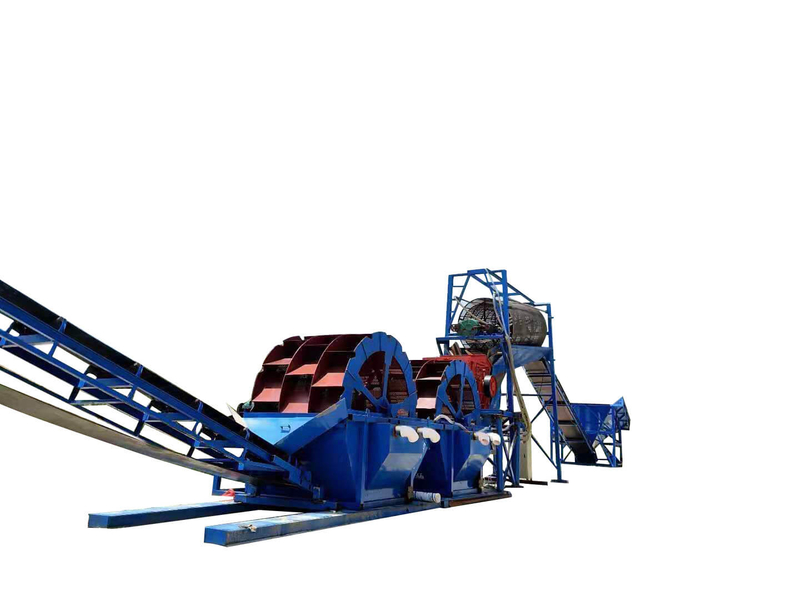

Wheel bucket sand washer is one kind of sand washing machine working together with sand making machine, it can clean and separate dust from sand. It's new seal-structure and reliable driving device can make sure the cleaning effective. Bucket sand washer is mainly used in building site, gravel plant, concrete dam building site of hydropower station, etc.A whole sand washing line include stone crusher, feeding belt, trommel screen, wheel sand washer, fine sand recovery machine, discharge belt.
Features
1.CCS Certification; SGS Certification;
2. Simple structure;
3. The bearing device of impeller drive is separated from water and 1 materials with water, to avoid the damage of the bearing;
4. New sealing structure and reliable transmission device;
5. Reasonable structure;
6. High capacity, low power consumption;
7. Easy structure, stable operation.
Our advantages
1. Reliable and efficient
2. Services-- experienced engineers to guide installing and training local workers. 24/7 technical support standby.
3. Free spare parts in the first year, low cost for services.
4. Supported L/C; T/T payment method.
5. Dismantled and easy transport.
Model | HJ-SW100 | HJ-SW200 | HJ-SW300 |
LOA (L*B*H) | 15.0*3.4*4.0M | 17.0*4.0*4.2M | 20.0*5.0*4.6M |
Capacity | 100m³/h | 200m³/h | 300m³/h |
Water consumption (Water can be recycled) | 50-70m³/h | 70-150m³/h | 100-200m³/h |
Total power | 55kw | 75kw | 100kw |
