HJ-M60
HJ

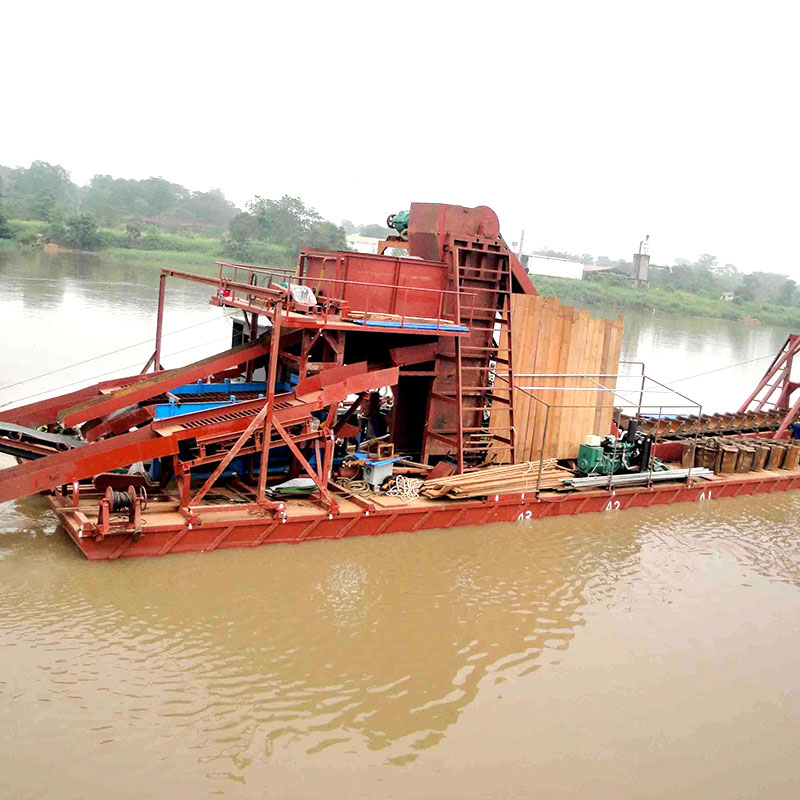

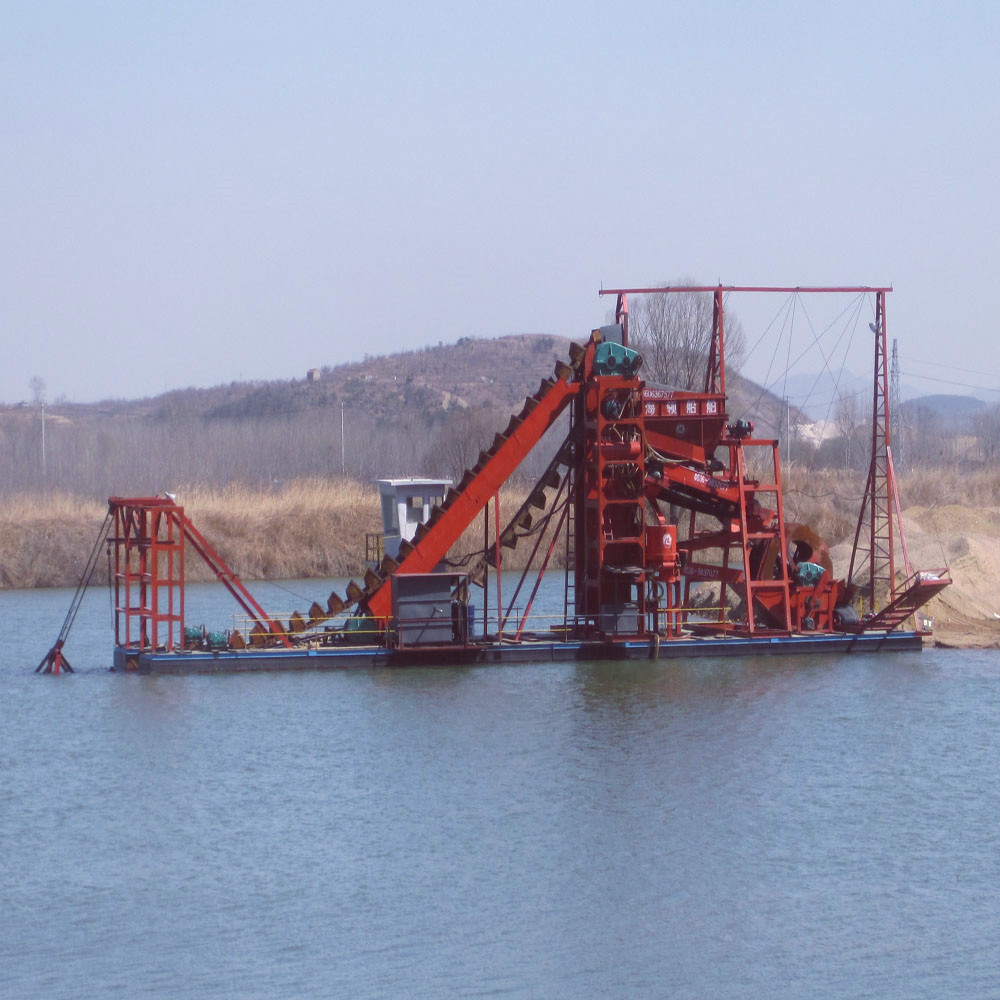

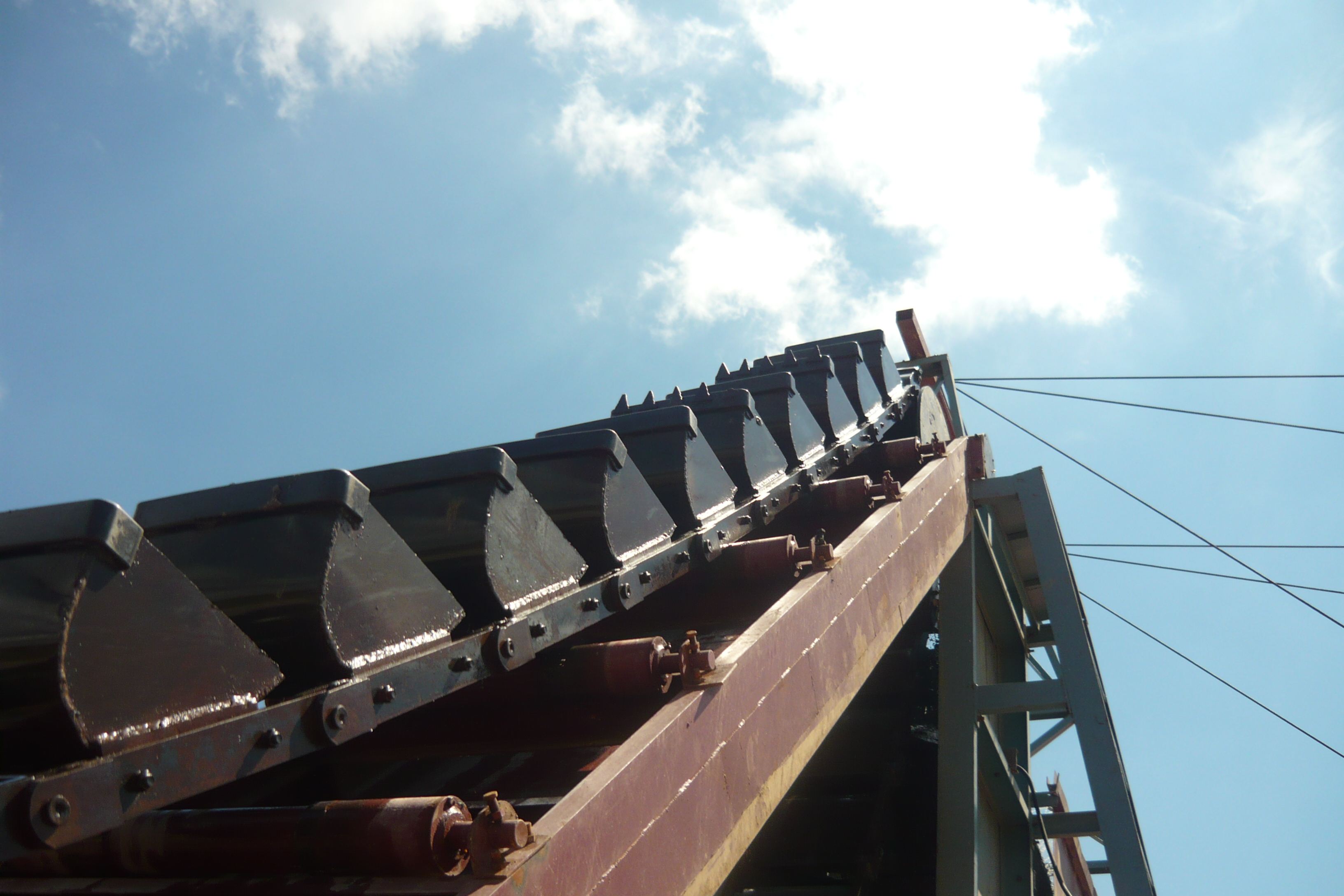

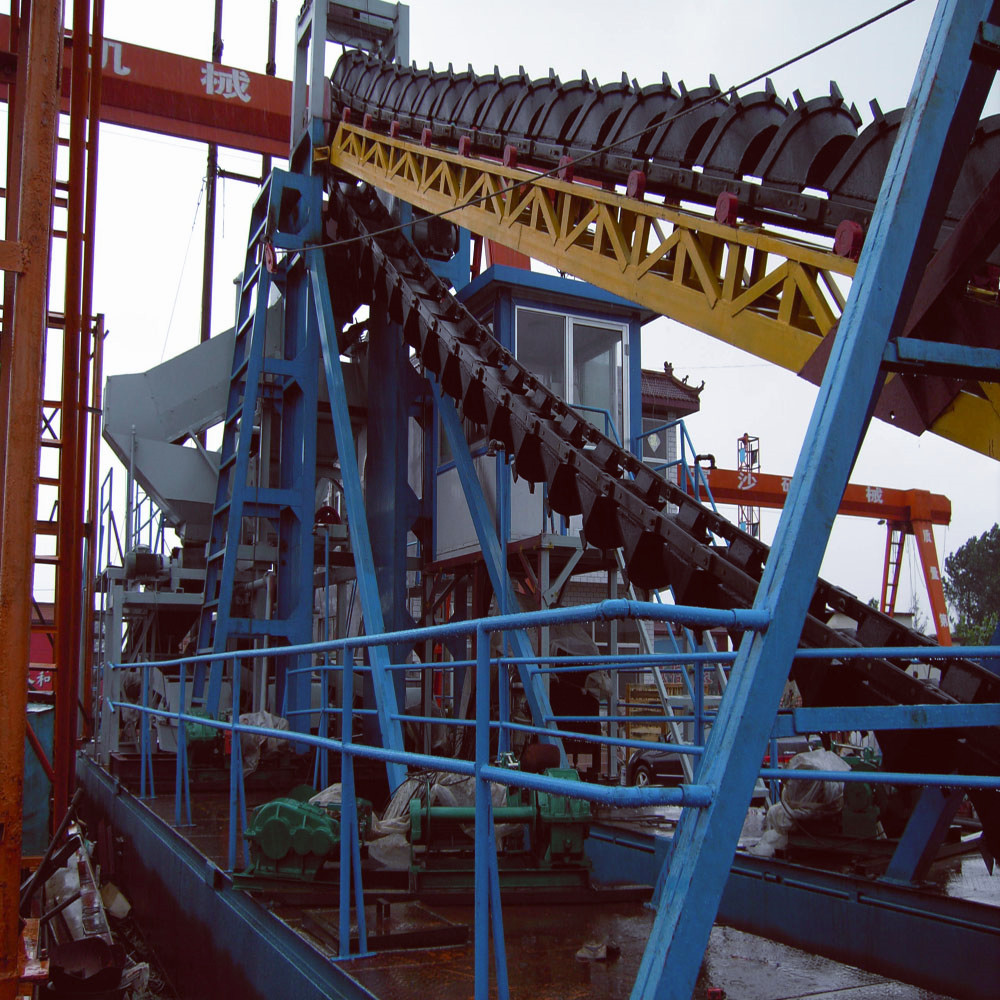

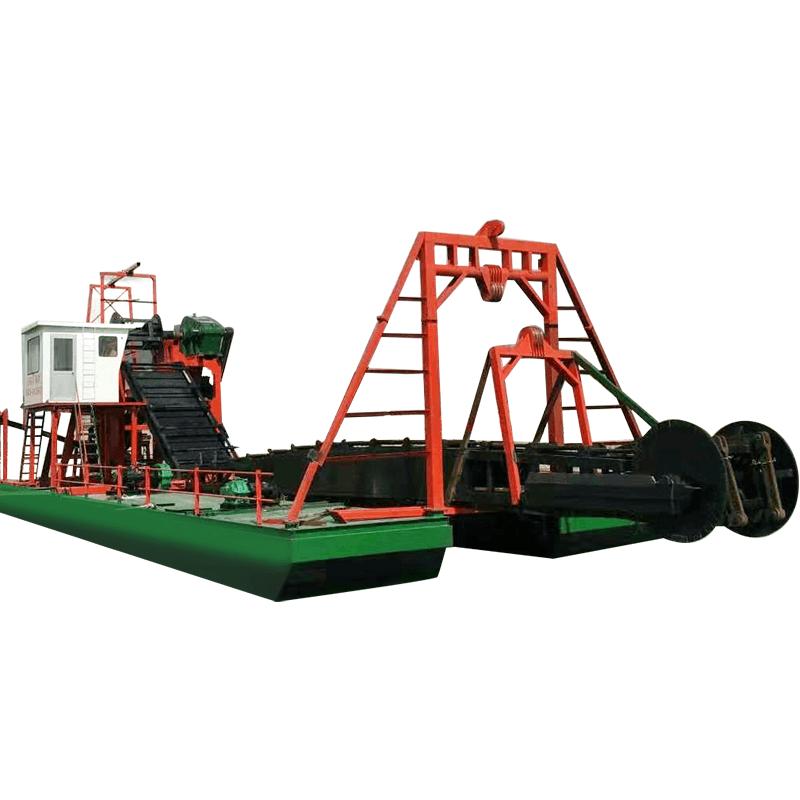

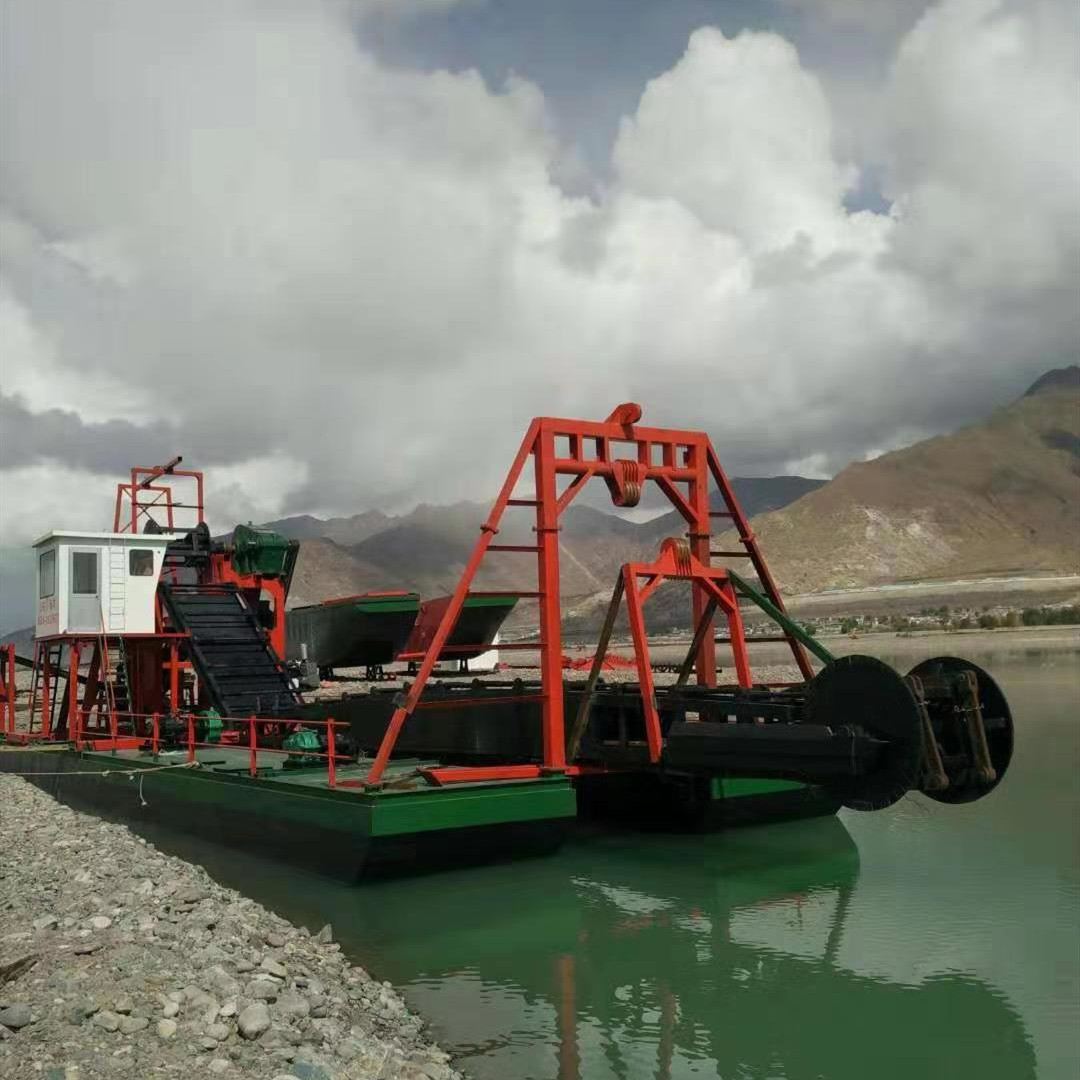

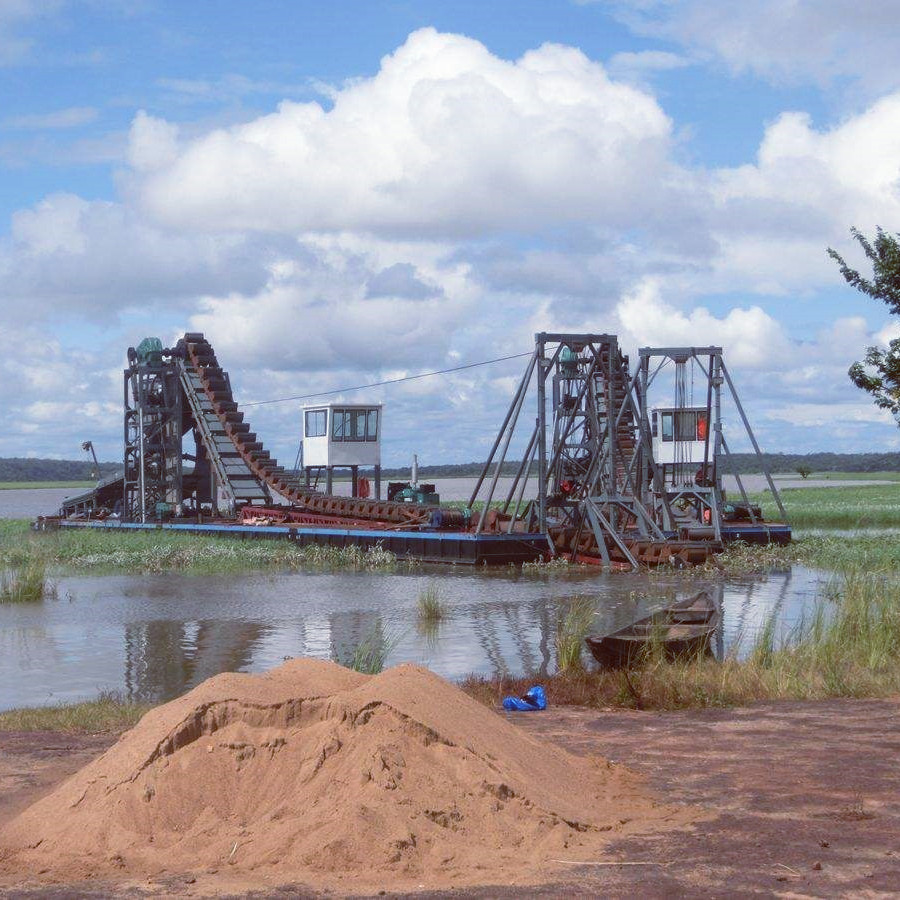

Bucket chain gold dredger. The hull adopts the assembled box structure. Equipped with operation room, generator sets, digging devices, sand separation devices, the primary gold extraction device, vibrating selected device, tailings recovery, tailings delivery devices, lifting devices, positioning devices. Can be designed according to the working environment.
Features:
1. CCS Certification; SGS Certification;
2. Customized.
3. Both main engine and auxiliary engine are CUMMINS engine.
4. High recovery
Our advantages
1. Reliable and efficient
2. Tested in pool before delivery
3. Quality Testing for each dredger before delivery to ensure all function working properly.
4. Services-- experienced engineers to guide installing and training local workers. 24/7 technical support standby.
5. Free spare parts in the first year, low cost for services.
6. Supported L/C; T/T payment method.
7. Dismantled and easy transport.
Model | HJ-M60 | HJ-M80 | HJ-M100 | HJ-M120 | HJ-M150 |
Hull size | 24*4.5*1 | 27*5.4*1 | 30*4.8*1 | 35*7.6*1.2 | 38*6.6*1.2 |
Dredging depth | 7m | 12m | 13m | 15m | 18m |
Drum screen(L*DIA) | 1.4*1.2 | 2.4*1.4 | 2.4*1.4 | 2.4*1.4 | 2.6*1.5 |
Drum screen power | 5.5KW | 5.5KW | 5.5KW | 7.5KW | 11KW |
Generator power | 75KW | 75KW | 75KW | 75KW | 75KW |
Chain bucket quantity | 86 | 62 | 62 | 86 | 86 |
Chain bucket capacity | 0.035KG | 0.05KG | 0.08KG | 0.08KG | 0.08KG |
Chain quantity | 172 | 124 | 124 | 172 | 172 |
Chain size | 600*100*30 | 600*100*30 | 800*100*35 | 800*120*40 | 800*120*40 |
